CURRENT CULTURE UC DB 16XL
$4,640.00 Inc. GST
Want to be notified when this product is back in stock?
Description

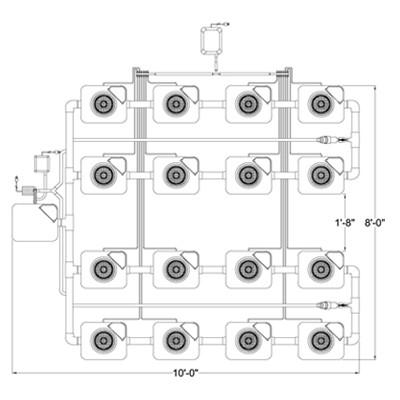

Current Culture are the world renowned for their patented undercurrent hydroponic systems and the UC Double-Barrel (DB) XL is their flagship producer for larger hobby commercial growers. Featuring a different square layout compared to the standard UC 16 XL Layout. Medical-grade cultivators are installing these systems all over the globe to increase their productivity and quality of harvest.
The Current Culture UC16 XL is a powerful setup and includes 16 pots and all required irrigation equipment and supplies. All Current Culture kits are perfectly cut to size, and manufactured for durability.
| System Dimensions | 2.86m x 3.09m |
|---|
| NUMBER OF ROWS: | 4 | ||
| NUMBER OF SITES: | 16 | ||
| PLANT SPACING & MODULE SIZE: | 25″ Centers / 8 Gallon |
RECOMMENDATIONS
| GROW AREA (FEET / METERS): | 12′ x 12′ / 3.66m x 3.66m |
| LIGHTING (HORIZONTAL): | 4 X 1000W |
| LIGHTING (VERTICAL): | N/A |
| WATER CHILLER SIZE* (HP): | 1/4 – 1/2 HP |
| RESERVOIR (GALLONS / LITERS): | 125 / 500 |
| VEG TIME (WEEKS/IN.): | 2-3 weeks / 18″-24″ |
*General Recommendation – Check Manufacturers Specifications for proper chiller sizing.
SPECS
| SYSTEM FOOTPRINT (FEET / METERS): | 8’2″ x 9’7″ / 2.5m x 2.93m |
| TOTAL SYSTEM VOLUME (GALLONS / LITERS): | 120 / 455 |
| POWER USAGE (WATTS): | 203 |
| AIR PUMP SIZE(S) (LPM): | (1)30, (1)80 |
| AERATION RATE (LPM PER GALLON): | 0.92 |
| WATER PUMP SIZE (GPH / LPH): | 950 / 3597 |
| RECIRCULATION RATE (EXCHANGES PER HR.): | 7.92 |
SHIPPING INFO
| SHIPPING WEIGHT (LBS. / KG): | 165 / 74.9 |
| SHIPPING BOX SIZES (IN.): | (2)16X18X36, (1)16x18x48 |
PROVEN PRODUCTION SYSTEM WITH:
- Prolific Yield Potential:
- Increased growth rates produce larger overall plants and drastically reduced vegetative times
- Higher productivity with fewer plants
- Increased efficiency
- High levels of aeration and constant circulation optimize plants nutrient uptake capacity
- Conserves water and necessitates less frequent nutrient change-outs
- Proven Nutrient Formula
- Our Cultured Solutions premium plant nutrients are custom formulated specifically for the Under Current® system and high-performance hydroponics Cultured Solutions® are pH stable, clean and highly chelated
- Reduced Maintenance
- pH, EC/TDS and solution temperatures stay uniform throughout the entire system
- Easily adaptable to pH/nutrient dosers, top-off reservoirs and water chillers

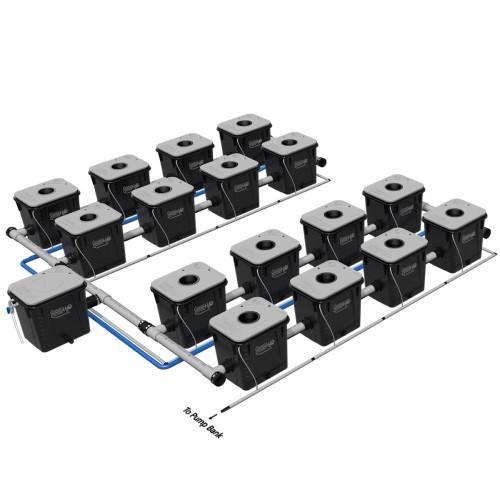

The Under Current DB 16 XL Includes:
-
8 Gallon “Blackout Series” Growth Modules
-
CCH2O 8″ Heavy Duty Lids with Port Hole
-
CCH2O 8″ Heavy Duty Net Pots
-
2″ Manifold & Joints with 2” UC Spin-Tight Bulkheads
-
Danner Mag-Drive™ Return Pump
-
Premium Linear Air Pump(s)
-
9” Air Diffuser Disc
-
Aqua-Pore Air Diffusers
-
Air Distribution Manifold
-
Air Hose, In-Line Filter(s)
-
Adjustable Float Valve with Reservoir Adapter Kit
-
Drain Valve
-
Chiller Adapter
-
Garden Hose Drain Adapter
-
Cultured Solutions™ VEG A/B
-
1-Year Warranty.
Additional information
| Weight | 100 kg |
|---|---|
| Dimensions | 120 × 100 × 134 cm |
